Test Run mode transforms your pipeline into an interactive testing environment where you can push data, observe transformations, and understand exactly what’s happening at every step.

​
How It Works

When you start a Test Run:
  1. Source and Sink nodes become stubs — Instead of connecting to real Kafka topics or databases, they become interactive endpoints
  2. The pipeline runs synchronously — Data flows through immediately, making it easy to follow
  3. Every node tracks inputs and outputs — You can inspect what each node received and produced

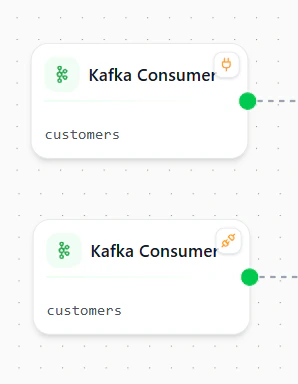

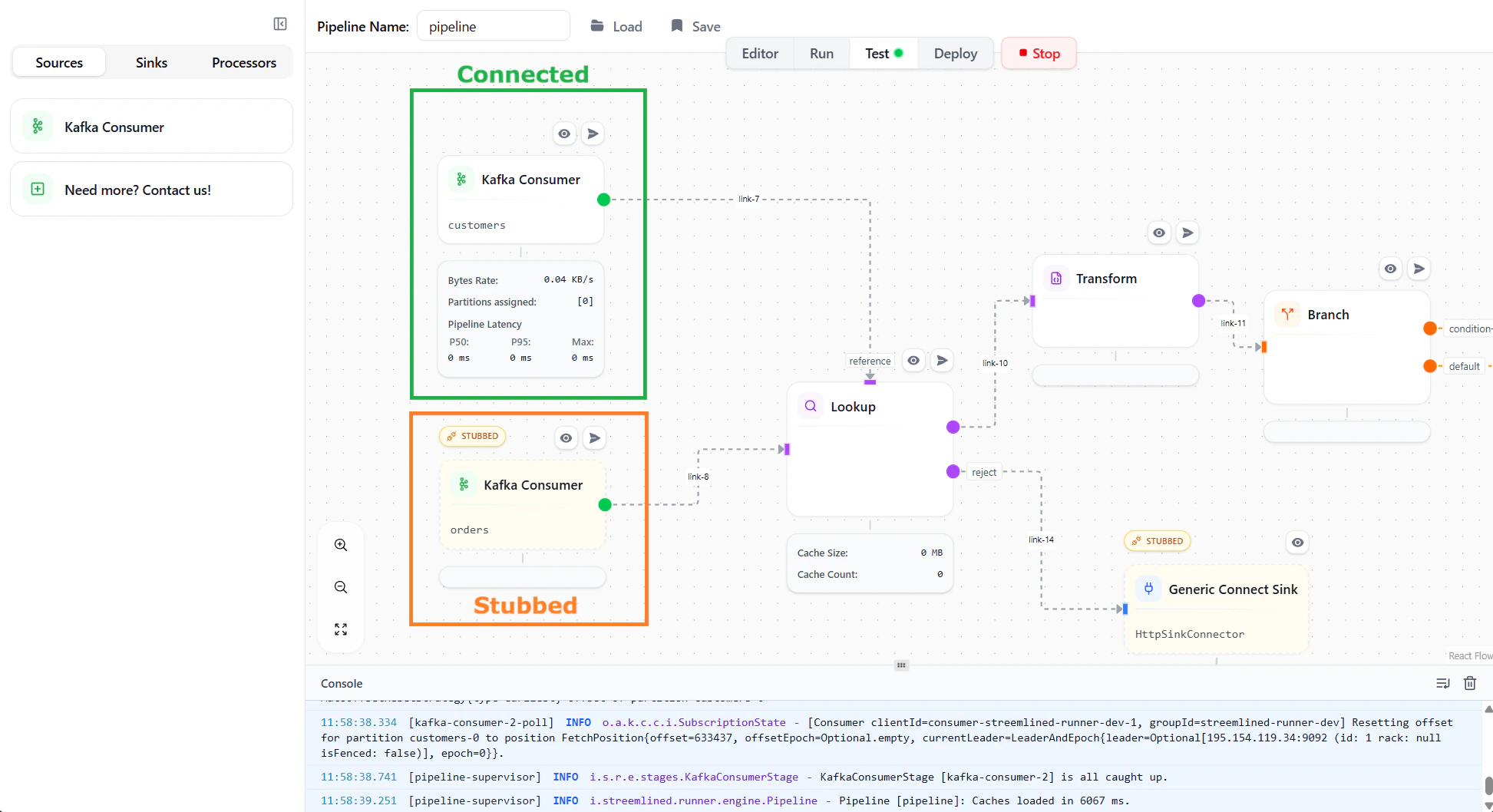

Test Run Mode Interface

​
Starting a Test Run

  1. Click the Test Run button in the toolbar (or use the dropdown next to Play)
  2. The pipeline enters test mode — you’ll see stub indicators on source and sink nodes
  3. Source nodes display an input area where you can push JSON messages

​
Pushing Test Data

With Test Run active, each source node shows a JSON input panel:
{
  "id": 123,
  "customer": {
    "name": "Alice Johnson",
    "email": "alice@example.com"
  },
  "items": [
    {"sku": "WIDGET-01", "price": 29.99, "qty": 2},
    {"sku": "GADGET-05", "price": 49.99, "qty": 1}
  ]
}
Click Send to push the message through the pipeline.

​
Inspecting Node I/O

After sending a message, every node displays its input and output data:
NodeInputOutput
Kafka Consumer (stub)—Your test JSON
TransformRaw orderTransformed record
BranchTransformed recordRouted to matching output
JDBC Sink (stub)Final record—
Click on any node to expand its I/O panel and see the full JSON payload. This is invaluable for debugging complex transformations.

​
Sink Stub Behavior

Sink nodes in Test Run mode:
  • Display all records they would have written
  • Show the exact payload that would go to Kafka, databases, or external systems
  • Allow you to verify output format before connecting to real systems

​
Benefits

No External Dependencies

Test without Kafka, databases, or other systems running

Instant Feedback

See results immediately as data flows synchronously

Full Visibility

Inspect every transformation step with detailed I/O logs

Safe Iteration

Experiment freely without affecting real data

​
Best Practices

Use Test Run mode to interactively build and debug your transformations. Once you’re confident in the logic, codify the scenarios as Pipeline Tests for CI/CD.
Try various inputs including:
  • Empty arrays and null values
  • Missing optional fields
  • Boundary conditions (e.g., exactly at threshold values)
  • Invalid data that should be rejected
For pipelines with Branch nodes, test messages that should route to each output to ensure your conditions work as expected.

​
Next Steps

Pipeline Tests

Automate testing with YAML test definitions

Deploy Pipelines

Deploy your tested pipeline to production
